Take-off
Every set counted, not sampled.
Fully automatic: equipment, duct by size and gauge, fittings, terminal units, diffusers, dampers and piping, counted across every sheet and linked to the region each quantity came from.
Operon HVAC · automated HVAC take-off software
Win more bids.
Same estimators.
Take-off, completely automatic. Operon HVAC reads your mechanical sets, counts every unit, diffuser and damper, checks the schedules against the spec and drafts the RFIs. Your estimators price; Operon counts.
- 99%
- take-off accuracy
- 8 min
- to process 1,000 pages
Northline Mechanical/EstimatingWorking
Maple Office – Level 2 TI
Bid due ThursdayDR
Dana RuizChief estimator · 2:02 PM
The Maple Office L2 TI set just came in, bid's due Thursday. Can you take off the mechanical, check it against the schedules and tell me what's open?
PDFMapleOffice_L2-TI_Mechanical_Bid-Set.pdf3 sheets
Message Estimating…
Bids come in faster than your estimators can count them. Operon HVAC’s take-off is completely automatic. It’s like hiring 100 more estimators for the price of one.
The unit, part by part
Every line on the schedule is a part on the roof.
Operon reads a mechanical set the way your estimator does: the rooftop unit and everything in it, the curb it sits on, and the gas, condensate and power runs that serve it, each counted and traced back to the sheet. Hover any part.
What it does
Schedules & specs
Conflicts caught before bid day.
Equipment schedules are checked against what is drawn, and the plans against Division 23, so mismatches and missing scope surface while there is still time to ask.
Take-off · Bid set Add. 2
Running
Read 312 sheets
Reconciled equipment schedule
Tracing duct runs across levels
Draft take-off for review
Submittals
Submittals checked against the spec.
Product data is compared with the spec section and the schedule. Deviations and missing data are flagged, and review comments are drafted for your project engineer to approve.
Submittal 23 73 13-02 · AHU-3
2 issues
Checked against Spec 23 73 13 · Schedule M-601
Airflow 12,000 cfm
Coil: 6 rows, 10 fpi
Filters: spec MERV 13, submitted MERV 8Deviation
Sound power dataMissing
Draft review comments
Bid inbox
The bid inbox, filed and answered.
Invitations, addenda and quotes are filed to the right job, and replies are drafted for your team to send.
Northline Mechanical
AI employees · Today
- Done
Bid inbox
38 emails filed to their jobs, 4 replies drafted
- Approve
Take-off · Maple Office, Level 2
Updated for Addendum 2
- Approve
Submittal review · AHU-1
2 deviations from the spec, each cited
- Done
Service agreements
12 renewals due, quotes drafted
Past jobs
Every past job, searchable.
Old bid sets, take-offs and change orders become one knowledge base, so the next estimate starts from what your company already learned.
Ask
Unit 1 · all revisions
What did we carry for controls on our last three lab jobs?
All three carried controls as a subcontract quote. Two excluded BAS integration, and one carried an allowance for graphics.
Bid 2024-031 · Scope letterBid 2024-077 · 23 09 00Bid 2025-012 · Alt 3
Ask about any line, unit or job…Ask
Take-off
Counts with evidence.

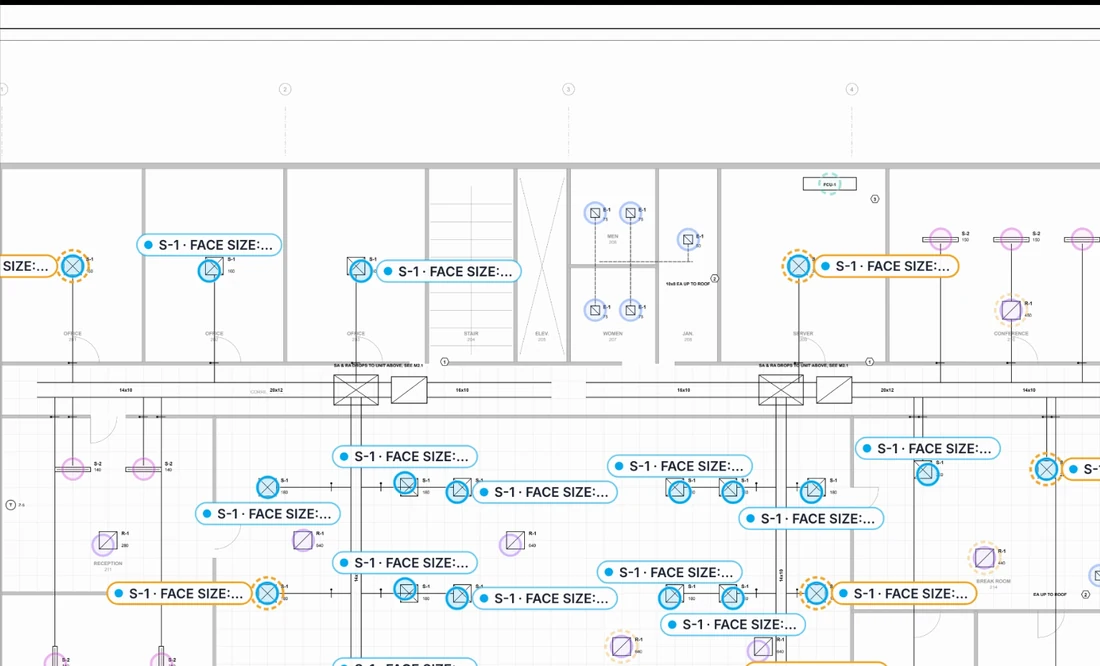

Click any quantity to see the sheet, the region and the symbol it was counted from. Anything measured from a printed scale stays provisional until a person confirms it.
- S-1Supply diffuser26M1.1
- R-1Return grille8M1.1
- S-2Linear slot diffuser7M1.1
- E-1Exhaust grille6M1.1
- RTU-1Rooftop unit1M1.1
Full set
counted on every bid, not sampled
Documents it reads
- Mechanical plans
- HVAC schedules
- Equipment schedules
- Duct layouts
- Piping plans
- Riser diagrams
- Spec Division 23
- Controls sequences
- Submittals
- RFIs
- Addenda
- As-builts
How we deploy
Live in three weeks, with our engineers inside your company.
We don't hand you software and leave. For the first month our engineers work with your team, connect your data and build your AI employees around how your company already works.
3 weeks
from kickoff to your first AI employees at work
One payment
a single down payment covers the whole cycle, with no additional cost
$2.8M
saved a year, on average, by what we deploy
Week 1
Pick the work
We sit with your team and find the work that costs you the most.
Weeks 1–3
Build
Our engineers connect your data and build your AI employees on it.
Week 3
Go live
Your AI employees start work. Your people approve what they send.
Month 1
Measure
We stay through the first month, tune the work and measure the savings.
Questions, answered.
Operon HVAC is automated HVAC take-off software for mechanical contractors. It reads mechanical drawing sets, counts equipment, duct, fittings, terminal units, diffusers, grilles, dampers and piping on every sheet, checks the counts against the schedules and the spec, and drafts RFIs for anything the drawings don’t settle.
Yes. Upload a drawing set and Operon HVAC counts it end to end, with no clicking symbols one by one. Your estimators review what it flags and price the job. It’s like hiring 100 more estimators for the price of one.
Operon HVAC’s take-off accuracy is 99%, and every quantity links to the sheet, region and symbol it was counted from, so anyone can check it in seconds. Anything measured from a printed scale stays provisional until a person confirms it.
Operon HVAC processes 1,000 pages in 8 minutes, so a full bid set is counted the same day it arrives.
Sign in at hvac.operonsolutions.com, or book a demo. Our engineers set up your workspace and your templates, and your first take-offs run within three weeks.
No. It produces the quantities and the evidence behind them; your estimators price them in the tools they already use. Exports are shaped to fit your templates.
Scale is read from each sheet and checked against known dimensions. Anything measured from a printed scale is marked provisional until a person confirms it.
Scope notes and responsibility matrices are read alongside the plans, and items marked by others or not in contract are kept out of your count.
No. Each company’s data is kept separate, encrypted in transit and at rest, and we never train models on it.
Count the next bid with Operon HVAC.
Upload a drawing set and see every unit, diffuser and damper counted, each one tied to its sheet.
